Public Member Functions | List of all members
biogears::SESystem Class Referenceabstract

#include <SESystem.h>

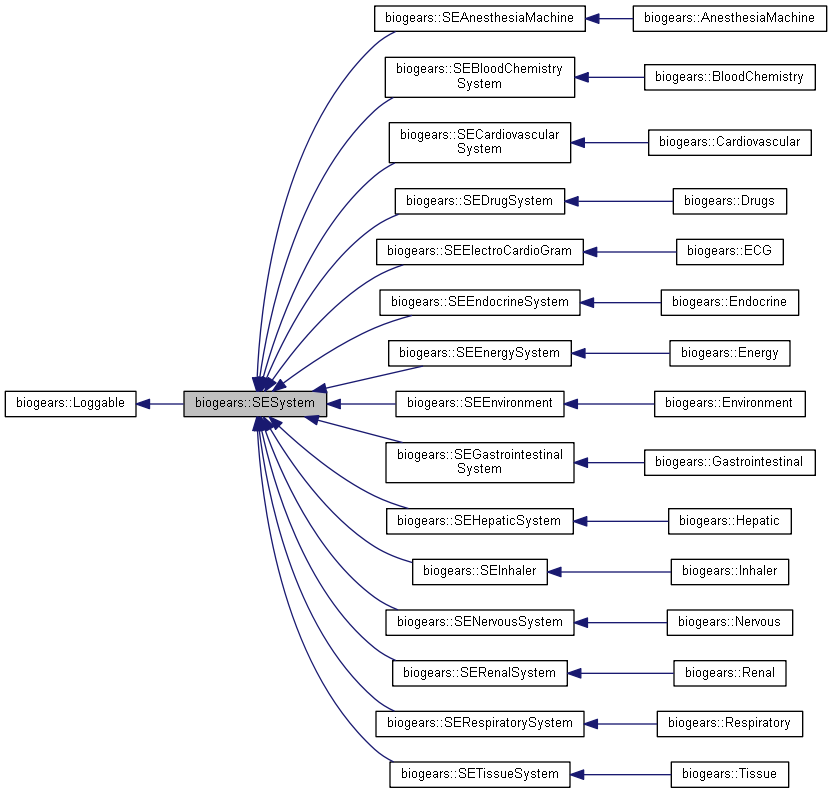

Inheritance diagram for biogears::SESystem:
Inheritance graph
[legend]

Public Member Functions

 SESystem (Logger *logger)

virtual ~SESystem ()

virtual const char * classname () const =0

virtual size_t hash_code () const =0

virtual void Clear ()

- Public Member Functions inherited from biogears::Loggable
 Loggable ()

 Loggable (Logger *log)

virtual ~Loggable ()

virtual Logger * GetLogger () const


GetScalar

- Look for the Scalar property in the systems contained in the provided vector

std::stringstream m_ss

virtual const SEScalar * GetScalar (const char *name)=0

virtual const SEScalar * GetScalar (const std::string &name)=0

bool Load (const CDM::SystemData &in)

virtual CDM::SystemData * Unload () const =0

virtual Tree< const char * > GetPhysiologyRequestGraph () const =0

static const SEScalar * GetScalar (const char *name, std::vector< SESystem * > *systems)

static const SEScalar * GetScalar (const std::string &name, std::vector< SESystem * > *systems)

void Unload (CDM::SystemData &data) const


Additional Inherited Members

- Static Public Attributes inherited from biogears::Loggable
static const std::string empty

static const char * empty_cStr

- Protected Member Functions inherited from biogears::Loggable
virtual void Debug (const char *msg, const char *origin="") const

virtual void Debug (const std::string &msg, const std::string &origin=empty) const

virtual void Debug (std::ostream &msg, const std::string &origin=empty) const

virtual void Info (const char *msg, const char *origin="") const

virtual void Info (const std::string &msg, const std::string &origin=empty) const

virtual void Info (std::ostream &msg, const std::string &origin=empty) const

virtual void Warning (const char *msg, const char *origin="") const

virtual void Warning (const std::string &msg, const std::string &origin=empty) const

virtual void Warning (std::ostream &msg, const std::string &origin=empty) const

virtual void Error (const char *msg, const char *origin="") const

virtual void Error (const std::string msg, const std::string origin=empty) const

virtual void Error (std::ostream &msg, const std::string &origin=empty) const

virtual void Fatal (const char *msg, const char *origin="") const

virtual void Fatal (const std::string &msg, const std::string &origin=empty) const

virtual void Fatal (std::ostream &msg, const std::string &origin=empty) const

- Protected Attributes inherited from biogears::Loggable
Logger * m_Logger


Constructor & Destructor Documentation

biogears::SESystem::SESystem ( Logger *  logger)
biogears::SESystem::~SESystem ( )
virtual

Member Function Documentation

virtual const char* biogears::SESystem::classname ( ) const
pure virtual

Implemented in biogears::Respiratory, biogears::Cardiovascular, biogears::Drugs, biogears::Tissue, biogears::Renal, biogears::BloodChemistry, biogears::Energy, biogears::SERenalSystem, biogears::AnesthesiaMachine, biogears::Environment, biogears::SEBloodChemistrySystem, biogears::Hepatic, biogears::Inhaler, biogears::SEAnesthesiaMachine, biogears::Endocrine, biogears::Gastrointestinal, biogears::Nervous, biogears::ECG, biogears::SECardiovascularSystem, biogears::SEDrugSystem, biogears::SEEnvironment, biogears::SEEndocrineSystem, biogears::SEEnergySystem, biogears::SERespiratorySystem, biogears::SEInhaler, biogears::SETissueSystem, biogears::SEGastrointestinalSystem, biogears::SENervousSystem, biogears::SEHepaticSystem, and biogears::SEElectroCardioGram.

void biogears::SESystem::Clear ( )
virtual

Reimplemented in biogears::Respiratory, biogears::Cardiovascular, biogears::Drugs, biogears::Tissue, biogears::Renal, biogears::BloodChemistry, biogears::Energy, biogears::SERenalSystem, biogears::AnesthesiaMachine, biogears::Environment, biogears::SEBloodChemistrySystem, biogears::Hepatic, biogears::Inhaler, biogears::SEAnesthesiaMachine, biogears::Endocrine, biogears::Gastrointestinal, biogears::Nervous, biogears::ECG, biogears::SECardiovascularSystem, biogears::SEDrugSystem, biogears::SEEnvironment, biogears::SEEndocrineSystem, biogears::SEEnergySystem, biogears::SERespiratorySystem, biogears::SEInhaler, biogears::SETissueSystem, biogears::SEGastrointestinalSystem, biogears::SENervousSystem, biogears::SEHepaticSystem, and biogears::SEElectroCardioGram.

virtual Tree<const char*> biogears::SESystem::GetPhysiologyRequestGraph ( ) const
pure virtual

Implemented in biogears::SEBloodChemistrySystem, biogears::SERenalSystem, biogears::SEGastrointestinalSystem, biogears::SEInhaler, biogears::SEAnesthesiaMachine, biogears::SECardiovascularSystem, biogears::SEDrugSystem, biogears::SEEnvironment, biogears::SEEndocrineSystem, biogears::SEEnergySystem, biogears::SERespiratorySystem, biogears::SETissueSystem, biogears::SENervousSystem, biogears::SEHepaticSystem, and biogears::SEElectroCardioGram.

virtual const SEScalar* biogears::SESystem::GetScalar ( const char *  name)
pure virtual

Implemented in biogears::SEAnesthesiaMachine, biogears::SEEnvironment, biogears::SERenalSystem, biogears::SEBloodChemistrySystem, biogears::SEInhaler, biogears::SECardiovascularSystem, biogears::SEDrugSystem, biogears::SEEndocrineSystem, biogears::SEEnergySystem, biogears::SERespiratorySystem, biogears::SETissueSystem, biogears::SEGastrointestinalSystem, biogears::SENervousSystem, biogears::SEHepaticSystem, and biogears::SEElectroCardioGram.

virtual const SEScalar* biogears::SESystem::GetScalar ( const std::string &  name)
pure virtual

Implemented in biogears::SEAnesthesiaMachine, biogears::SEEnvironment, biogears::SERenalSystem, biogears::SEBloodChemistrySystem, biogears::SEInhaler, biogears::SECardiovascularSystem, biogears::SEDrugSystem, biogears::SEEndocrineSystem, biogears::SEEnergySystem, biogears::SERespiratorySystem, biogears::SETissueSystem, biogears::SEGastrointestinalSystem, biogears::SENervousSystem, biogears::SEHepaticSystem, and biogears::SEElectroCardioGram.

const SEScalar * biogears::SESystem::GetScalar ( const char *  name,
std::vector< SESystem * > *  systems
)
static
const SEScalar * biogears::SESystem::GetScalar ( const std::string &  name,
std::vector< SESystem * > *  systems
)
static
virtual size_t biogears::SESystem::hash_code ( ) const
pure virtual

Implemented in biogears::Respiratory, biogears::Cardiovascular, biogears::Drugs, biogears::Tissue, biogears::Renal, biogears::BloodChemistry, biogears::Energy, biogears::SERenalSystem, biogears::AnesthesiaMachine, biogears::Environment, biogears::SEBloodChemistrySystem, biogears::Hepatic, biogears::Inhaler, biogears::SEAnesthesiaMachine, biogears::Endocrine, biogears::Gastrointestinal, biogears::Nervous, biogears::ECG, biogears::SECardiovascularSystem, biogears::SEDrugSystem, biogears::SEEnvironment, biogears::SEEndocrineSystem, biogears::SEEnergySystem, biogears::SERespiratorySystem, biogears::SEInhaler, biogears::SETissueSystem, biogears::SEGastrointestinalSystem, biogears::SENervousSystem, biogears::SEHepaticSystem, and biogears::SEElectroCardioGram.

bool biogears::SESystem::Load ( const CDM::SystemData &  in)
virtual CDM::SystemData* biogears::SESystem::Unload ( ) const
pure virtual

Implemented in biogears::Respiratory, biogears::Cardiovascular, biogears::Drugs, biogears::Tissue, biogears::Renal, biogears::BloodChemistry, biogears::Energy, biogears::AnesthesiaMachine, biogears::Environment, biogears::SEBloodChemistrySystem, biogears::SERenalSystem, biogears::Hepatic, biogears::Inhaler, biogears::Endocrine, biogears::Gastrointestinal, biogears::SEGastrointestinalSystem, biogears::SEInhaler, biogears::Nervous, biogears::ECG, biogears::SEAnesthesiaMachine, biogears::SECardiovascularSystem, biogears::SEDrugSystem, biogears::SEEnvironment, biogears::SEEndocrineSystem, biogears::SEEnergySystem, biogears::SERespiratorySystem, biogears::SETissueSystem, biogears::SENervousSystem, biogears::SEHepaticSystem, and biogears::SEElectroCardioGram.

void biogears::SESystem::Unload ( CDM::SystemData &  data) const
protected

Member Data Documentation

std::stringstream biogears::SESystem::m_ss
protected
