The Environment class characterizes the environment and manages interactions between the body its surroundings. More...

#include <Environment.h>

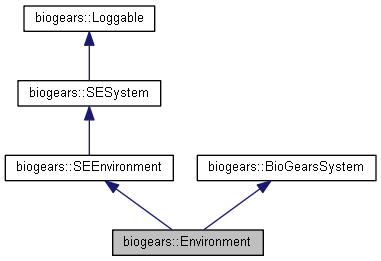

Inheritance diagram for biogears::Environment:

[legend]

Public Member Functions
virtual	~Environment () override

const char *	classname () const override

size_t	hash_code () const override

void	Clear () override

void	Initialize () override
	Initializes system properties to valid homeostatic values. More...

virtual bool	Load (const CDM::BioGearsEnvironmentData &in)

virtual CDM::BioGearsEnvironmentData *	Unload () const override

void	AtSteadyState () override
	Notify systems that steady state has been achieved. More...

void	PreProcess () override
	Preprocess prepares the cardiovascular system for the circuit solver. More...

void	Process () override
	There is nothing to do here. Processing the combined Energy-Environment circuit is handled by the Energy system. More...

void	PostProcess () override
	There is nothing to do here. Postprocessing the combined Energy-Environment circuit is handled by the Energy system. More...

void	StateChange () override
	Resets environment parameters. More...

Public Member Functions inherited from biogears::SEEnvironment
	SEEnvironment (SESubstanceManager &substances)

	~SEEnvironment () override

bool	Load (const CDM::EnvironmentData &in)

bool	Load (const char *patientFile)

bool	Load (const std::string &patientFile)

Tree< const char * >	GetPhysiologyRequestGraph () const override

bool	ProcessChange (const SEEnvironmentChange &action)

bool	ProcessChange (const SEInitialEnvironment &change)

const SEScalar *	GetScalar (const char *name) override

const SEScalar *	GetScalar (const std::string &name) override

std::string	GetName () const

const char *	GetName_cStr () const

void	SetName (const char *name)

void	SetName (const std::string &name)

bool	HasName () const

void	InvalidateName ()

bool	HasConditions () const

SEEnvironmentalConditions &	GetConditions ()

const SEEnvironmentalConditions *	GetConditions () const

void	RemoveConditions ()

bool	HasConvectiveHeatLoss () const

SEScalarPower &	GetConvectiveHeatLoss ()

double	GetConvectiveHeatLoss (const PowerUnit &unit) const

bool	HasConvectiveHeatTranferCoefficient () const

SEScalarHeatConductancePerArea &	GetConvectiveHeatTranferCoefficient ()

double	GetConvectiveHeatTranferCoefficient (const HeatConductancePerAreaUnit &unit) const

bool	HasEvaporativeHeatLoss () const

SEScalarPower &	GetEvaporativeHeatLoss ()

double	GetEvaporativeHeatLoss (const PowerUnit &unit) const

bool	HasEvaporativeHeatTranferCoefficient () const

SEScalarHeatConductancePerArea &	GetEvaporativeHeatTranferCoefficient ()

double	GetEvaporativeHeatTranferCoefficient (const HeatConductancePerAreaUnit &unit) const

bool	HasRadiativeHeatLoss () const

SEScalarPower &	GetRadiativeHeatLoss ()

double	GetRadiativeHeatLoss (const PowerUnit &unit) const

bool	HasRadiativeHeatTranferCoefficient () const

SEScalarHeatConductancePerArea &	GetRadiativeHeatTranferCoefficient ()

double	GetRadiativeHeatTranferCoefficient (const HeatConductancePerAreaUnit &unit) const

bool	HasRespirationHeatLoss () const

SEScalarPower &	GetRespirationHeatLoss ()

double	GetRespirationHeatLoss (const PowerUnit &unit) const

bool	HasSkinHeatLoss () const

SEScalarPower &	GetSkinHeatLoss ()

double	GetSkinHeatLoss (const PowerUnit &unit) const

Public Member Functions inherited from biogears::SESystem
	SESystem (Logger *logger)

virtual	~SESystem ()

bool	Load (const CDM::SystemData &in)

Public Member Functions inherited from biogears::Loggable
	Loggable ()

	Loggable (Logger *log)

virtual	~Loggable ()

virtual Logger *	GetLogger () const

Static Public Member Functions
static size_t	TypeHash ()

static constexpr char const *const	TypeTag ()

Static Public Member Functions inherited from biogears::SEEnvironment
static size_t	TypeHash ()

static constexpr char const *const	TypeTag ()

Static Public Member Functions inherited from biogears::SESystem
static const SEScalar *	GetScalar (const char name, std::vector< SESystem > *systems)

static const SEScalar *	GetScalar (const std::string &name, std::vector< SESystem * > *systems)

Protected Member Functions
	Environment (BioGears &bg)

virtual void	Unload (CDM::BioGearsEnvironmentData &data) const

void	SetUp () override

void	ProcessActions ()
	Apply environment specific actions. More...

void	CalculateSupplementalValues ()
	Calculate intermediate values to be used later. More...

void	CalculateRadiation ()
	Determine the effects of radiation. More...

void	CalculateConvection ()
	Determine the effects of convection. More...

void	CalculateEvaporation ()
	Determine the effects of evaporation. More...

void	CalculateRespiration ()
	Determine the effects of respiration. More...

Protected Member Functions inherited from biogears::SEEnvironment
void	Unload (CDM::EnvironmentData &data) const

Protected Member Functions inherited from biogears::SESystem
void	Unload (CDM::SystemData &data) const

Protected Member Functions inherited from biogears::Loggable
virtual void	Debug (const char msg, const char origin="") const

virtual void	Debug (const std::string &msg, const std::string &origin=empty) const

virtual void	Debug (std::ostream &msg, const std::string &origin=empty) const

virtual void	Info (const char msg, const char origin="") const

virtual void	Info (const std::string &msg, const std::string &origin=empty) const

virtual void	Info (std::ostream &msg, const std::string &origin=empty) const

virtual void	Warning (const char msg, const char origin="") const

virtual void	Warning (const std::string &msg, const std::string &origin=empty) const

virtual void	Warning (std::ostream &msg, const std::string &origin=empty) const

virtual void	Error (const char msg, const char origin="") const

virtual void	Error (const std::string msg, const std::string origin=empty) const

virtual void	Error (std::ostream &msg, const std::string &origin=empty) const

virtual void	Fatal (const char msg, const char origin="") const

virtual void	Fatal (const std::string &msg, const std::string &origin=empty) const

virtual void	Fatal (std::ostream &msg, const std::string &origin=empty) const

Protected Member Functions inherited from biogears::BioGearsSystem
virtual void	LoadState ()

Static Protected Member Functions
static auto	make_unique (BioGears &bg) -> std::unique_ptr< Environment >

Protected Attributes
BioGears &	m_data

double	m_dLewisRelation

double	m_dHeatOfVaporizationOfWater_J_Per_kg

double	m_dWaterVaporPressureInAmbientAir_Pa

double	m_dWaterVaporPressureAtSkin_Pa

double	m_WaterSpecificHeat_J_Per_kg_K

double	m_WaterViscosity_N_s_Per_m2

double	m_WaterThermalConductivity_W_Per_m_K

double	m_ThermalExpansion_Per_K

double	m_PatientEquivalentDiameter_m

SEPatient *	m_Patient

SEPatientActionCollection *	m_PatientActions

SEEnvironmentActionCollection *	m_EnvironmentActions

SEGasCompartment *	m_AmbientGases

SELiquidCompartment *	m_AmbientAerosols

SEThermalCircuit *	m_EnvironmentCircuit

SEThermalCircuitNode *	m_ThermalEnvironment

SEThermalCircuitNode *	m_SkinNode

SEThermalCircuitNode *	m_ClothingNode

SEThermalCircuitNode *	m_EnclosureNode

SEThermalCircuitPath *	m_SkinToClothing

SEThermalCircuitPath *	m_ActiveHeatTransferRatePath

SEThermalCircuitPath *	m_ActiveTemperaturePath

SEThermalCircuitPath *	m_ActiveSwitchPath

SEThermalCircuitPath *	m_ClothingToEnclosurePath

SEThermalCircuitPath *	m_GroundToEnclosurePath

SEThermalCircuitPath *	m_ClothingToEnvironmentPath

SEThermalCircuitPath *	m_GroundToEnvironmentPath

SEThermalCircuitPath *	m_EnvironmentSkinToGroundPath

SEThermalCircuitPath *	m_EnvironmentCoreToGroundPath

Protected Attributes inherited from biogears::SEEnvironment
std::string	m_Name

SEScalarPower *	m_ConvectiveHeatLoss

SEScalarHeatConductancePerArea *	m_ConvectiveHeatTranferCoefficient

SEScalarPower *	m_EvaporativeHeatLoss

SEScalarHeatConductancePerArea *	m_EvaporativeHeatTranferCoefficient

SEScalarPower *	m_RadiativeHeatLoss

SEScalarHeatConductancePerArea *	m_RadiativeHeatTranferCoefficient

SEScalarPower *	m_RespirationHeatLoss

SEScalarPower *	m_SkinHeatLoss

SEEnvironmentalConditions *	m_Conditions

SESubstanceManager &	m_Substances

Protected Attributes inherited from biogears::SESystem
std::stringstream	m_ss

Protected Attributes inherited from biogears::Loggable
Logger *	m_Logger

Friends
class	BioGears

class	BioGearsEngineTest

Additional Inherited Members
Static Public Attributes inherited from biogears::Loggable
static const std::string	empty

static const char *	empty_cStr

Detailed Description

The Environment class characterizes the environment and manages interactions between the body its surroundings.

Constructor & Destructor Documentation

biogears::Environment::Environment ( BioGears & bg )

protected

biogears::Environment::~Environment ( )

overridevirtual

Member Function Documentation

void biogears::Environment::AtSteadyState ( )

overridevirtual

Notify systems that steady state has been achieved.

Reimplemented from biogears::BioGearsSystem.

void biogears::Environment::CalculateConvection ( )

protected

Determine the effects of convection.

This determines the circuit element values and system data outputs associated with convection heat transfer based on feedback.

void biogears::Environment::CalculateEvaporation ( )

protected

Determine the effects of evaporation.

This determines the circuit element values and system data outputs associated with evaporation heat transfer based on feedback.

: The units of this constant are incorrect on the CDM–they should be W_Per_m2_Pa (no support for this unit currently)

void biogears::Environment::CalculateRadiation ( )

protected

Determine the effects of radiation.

This determines the circuit element values and system data outputs associated with radiation heat transfer based on feedback.

void biogears::Environment::CalculateRespiration ( )

protected

Determine the effects of respiration.

This determines the circuit element values and system data outputs associated with respiration heat transfer based on feedback.

void biogears::Environment::CalculateSupplementalValues ( )

protected

Calculate intermediate values to be used later.

These computed values will be used in the other feedback methods.

const char* biogears::Environment::classname ( ) const

inlineoverridevirtual

Reimplemented from biogears::SEEnvironment.

void biogears::Environment::Clear ( )

overridevirtual

Reimplemented from biogears::SEEnvironment.

size_t biogears::Environment::hash_code ( ) const

inlineoverridevirtual

Reimplemented from biogears::SEEnvironment.

void biogears::Environment::Initialize ( )

overridevirtual

Initializes system properties to valid homeostatic values.

Reimplemented from biogears::BioGearsSystem.

bool biogears::Environment::Load ( const CDM::BioGearsEnvironmentData & in )

virtual

auto biogears::Environment::make_unique ( BioGears & bg ) -> std::unique_ptr<Environment>

staticprotected

void biogears::Environment::PostProcess ( )

overridevirtual

There is nothing to do here. Postprocessing the combined Energy-Environment circuit is handled by the Energy system.

Implements biogears::BioGearsSystem.

void biogears::Environment::PreProcess ( )

overridevirtual

Preprocess prepares the cardiovascular system for the circuit solver.

This function uses feedback to calculate thermal properties and circuit element values for the next engine state.

Implements biogears::BioGearsSystem.

void biogears::Environment::Process ( )

overridevirtual

There is nothing to do here. Processing the combined Energy-Environment circuit is handled by the Energy system.

Implements biogears::BioGearsSystem.

void biogears::Environment::ProcessActions ( )

protected

Apply environment specific actions.

Handle active heating and/or cooling. This will set the active heat flow source and/or the active temperature source. The applied area or fraction is used to determine the average patient application, since we're using a one dimensional model. They can be called individually or will sum together if called in combination. Note that the action manager will handle removing the actions (i.e. will return false for has calls).

Error:: Warning: SurfaceArea and SurfaceAreaFraction are both set. The largest fraction will be used.

Error:: Warning: Neither SurfaceArea nor SurfaceAreaFraction are set. A fraction of 1 will be used.

Error:: Warning: Thermal application effective area exceeds the total skin surface area. A fraction of 1 will be used.

Error:: Warning: SurfaceArea and SurfaceAreaFraction are both set. The largest fraction will be used.

Error:: Warning: Neither SurfaceArea nor SurfaceAreaFraction are set. A fraction of 1 will be used.

Error:: Warning: Thermal application effective area exceeds the total skin surface area. A fraction of 1 will be used.

Error:: Warning: AppliedSurfaceArea and AppliedSurfaceAreaFraction are both set. The largest fraction will be used.

Error:: Warning: Neither AppliedSurfaceArea nor AppliedSurfaceAreaFraction are set. A fraction of 1 will be used.

Error:: Warning: Thermal application effective area exceeds the total skin surface area. A fraction of 1 will be used.

void biogears::Environment::SetUp ( )

overrideprotectedvirtual

Implements biogears::BioGearsSystem.

void biogears::Environment::StateChange ( )

overridevirtual

Resets environment parameters.

This is called any time the environment change action/condition. It sets the ambient node values needed for the fluid systems.

Error:: Fatal: Total ambient/environment gas volume fractions must sum to 1.0.

Implements biogears::SEEnvironment.

static size_t biogears::Environment::TypeHash ( )

inlinestatic

static constexpr char const* const biogears::Environment::TypeTag ( )

inlinestatic

CDM::BioGearsEnvironmentData * biogears::Environment::Unload ( ) const

overridevirtual

Reimplemented from biogears::SEEnvironment.

void biogears::Environment::Unload ( CDM::BioGearsEnvironmentData & data ) const

protectedvirtual

Friends And Related Function Documentation

friend class BioGears

friend

friend class BioGearsEngineTest

friend

Member Data Documentation

SEThermalCircuitPath* biogears::Environment::m_ActiveHeatTransferRatePath

protected

SEThermalCircuitPath* biogears::Environment::m_ActiveSwitchPath

protected

SEThermalCircuitPath* biogears::Environment::m_ActiveTemperaturePath

protected

SELiquidCompartment* biogears::Environment::m_AmbientAerosols

protected

SEGasCompartment* biogears::Environment::m_AmbientGases

protected

SEThermalCircuitNode* biogears::Environment::m_ClothingNode

protected

SEThermalCircuitPath* biogears::Environment::m_ClothingToEnclosurePath

protected

SEThermalCircuitPath* biogears::Environment::m_ClothingToEnvironmentPath

protected

BioGears& biogears::Environment::m_data

protected

double biogears::Environment::m_dHeatOfVaporizationOfWater_J_Per_kg

protected

double biogears::Environment::m_dLewisRelation

protected

double biogears::Environment::m_dWaterVaporPressureAtSkin_Pa

protected

double biogears::Environment::m_dWaterVaporPressureInAmbientAir_Pa

protected

SEThermalCircuitNode* biogears::Environment::m_EnclosureNode

protected

SEEnvironmentActionCollection* biogears::Environment::m_EnvironmentActions

protected

SEThermalCircuit* biogears::Environment::m_EnvironmentCircuit

protected

SEThermalCircuitPath* biogears::Environment::m_EnvironmentCoreToGroundPath

protected

SEThermalCircuitPath* biogears::Environment::m_EnvironmentSkinToGroundPath

protected

SEThermalCircuitPath* biogears::Environment::m_GroundToEnclosurePath

protected

SEThermalCircuitPath* biogears::Environment::m_GroundToEnvironmentPath

protected

SEPatient* biogears::Environment::m_Patient

protected

SEPatientActionCollection* biogears::Environment::m_PatientActions

protected

double biogears::Environment::m_PatientEquivalentDiameter_m

protected

SEThermalCircuitNode* biogears::Environment::m_SkinNode

protected

SEThermalCircuitPath* biogears::Environment::m_SkinToClothing

protected

SEThermalCircuitNode* biogears::Environment::m_ThermalEnvironment

protected

double biogears::Environment::m_ThermalExpansion_Per_K

protected

double biogears::Environment::m_WaterSpecificHeat_J_Per_kg_K

protected

double biogears::Environment::m_WaterThermalConductivity_W_Per_m_K

protected

double biogears::Environment::m_WaterViscosity_N_s_Per_m2

protected

Public Member Functions

Static Public Member Functions

Protected Member Functions

Static Protected Member Functions

Protected Attributes

Friends

Additional Inherited Members

Detailed Description

Constructor & Destructor Documentation

Member Function Documentation

Friends And Related Function Documentation

Member Data Documentation
