biogears::Inhaler Class Reference

#include <Inhaler.h>

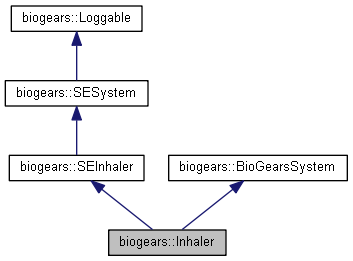

Inheritance diagram for biogears::Inhaler:

Public Member Functions
virtual	~Inhaler () override
const char *	classname () const override
size_t	hash_code () const override
void	Clear () override
void	Initialize () override
	Initializes system properties to valid homeostatic values. More...
bool	Load (const CDM::BioGearsInhalerData &in)
CDM::BioGearsInhalerData *	Unload () const override
void	PreProcess () override
	Inhaler Action Preprocessor. More...
void	Process () override
	Inhaler system process function. More...
void	PostProcess () override
	Inhaler system postprocess function. More...
Public Member Functions inherited from biogears::SEInhaler
	SEInhaler (SESubstanceManager &substances)
	~SEInhaler () override
bool	Load (const std::string &file)
CDM::enumOnOff::value	GetState () const
void	SetState (CDM::enumOnOff::value name)
bool	HasState () const
void	InvalidateState ()
bool	HasMeteredDose () const
SEScalarMass &	GetMeteredDose ()
double	GetMeteredDose (const MassUnit &unit) const
bool	HasNozzleLoss () const
SEScalarFraction &	GetNozzleLoss ()
double	GetNozzleLoss () const
bool	HasSpacerVolume () const
SEScalarVolume &	GetSpacerVolume ()
double	GetSpacerVolume (const VolumeUnit &unit) const
bool	HasSubstance () const
void	SetSubstance (const SESubstance *sub)
SESubstance *	GetSubstance () const
const SEScalar *	GetScalar (const char *name) override
const SEScalar *	GetScalar (const std::string &name) override
bool	Load (const CDM::InhalerData &in)
Tree< const char * >	GetPhysiologyRequestGraph () const override
Public Member Functions inherited from biogears::SESystem
	SESystem (Logger *logger)
virtual	~SESystem ()
bool	Load (const CDM::SystemData &in)
Public Member Functions inherited from biogears::Loggable
	Loggable ()
	Loggable (Logger *log)
virtual	~Loggable ()
virtual Logger *	GetLogger () const
Public Member Functions inherited from biogears::BioGearsSystem
virtual void	AtSteadyState ()
	Notify systems that steady state has been achieved. More...

Static Public Member Functions
static size_t	TypeHash ()
static constexpr char const *const	TypeTag ()
Static Public Member Functions inherited from biogears::SEInhaler
static size_t	TypeHash ()
static constexpr char const *const	TypeTag ()
Static Public Member Functions inherited from biogears::SESystem
static const SEScalar *	GetScalar (const char *name, std::vector< SESystem * > *systems)
static const SEScalar *	GetScalar (const std::string &name, std::vector< SESystem * > *systems)

Protected Member Functions
	Inhaler (BioGears &bg)
void	Unload (CDM::BioGearsInhalerData &data) const
void	SetUp () override
void	StateChange () override
void	Administer ()
	Administer Substance Using Inhaler. More...
Protected Member Functions inherited from biogears::SEInhaler
void	Merge (const SEInhaler &from)
void	ProcessConfiguration (const SEInhalerConfiguration &config)
void	Unload (CDM::InhalerData &data) const
Protected Member Functions inherited from biogears::SESystem
void	Unload (CDM::SystemData &data) const
Protected Member Functions inherited from biogears::Loggable
virtual void	Debug (const char *msg, const char *origin="") const
virtual void	Debug (const std::string &msg, const std::string &origin=empty) const
virtual void	Debug (std::ostream &msg, const std::string &origin=empty) const
virtual void	Info (const char *msg, const char *origin="") const
virtual void	Info (const std::string &msg, const std::string &origin=empty) const
virtual void	Info (std::ostream &msg, const std::string &origin=empty) const
virtual void	Warning (const char *msg, const char *origin="") const
virtual void	Warning (const std::string &msg, const std::string &origin=empty) const
virtual void	Warning (std::ostream &msg, const std::string &origin=empty) const
virtual void	Error (const char *msg, const char *origin="") const
virtual void	Error (const std::string msg, const std::string origin=empty) const
virtual void	Error (std::ostream &msg, const std::string &origin=empty) const
virtual void	Fatal (const char *msg, const char *origin="") const
virtual void	Fatal (const std::string &msg, const std::string &origin=empty) const
virtual void	Fatal (std::ostream &msg, const std::string &origin=empty) const
Protected Member Functions inherited from biogears::BioGearsSystem
virtual void	LoadState ()

Static Protected Member Functions
static auto	make_unique (BioGears &bg) -> std::unique_ptr< Inhaler >

Protected Attributes
BioGears &	m_data
double	m_dt_s
SEGasCompartment *	m_Mouthpiece
SELiquidCompartment *	m_AerosolMouthpiece
SEGasCompartment *	m_AmbientEnv
SELiquidSubstanceQuantity *	m_InhalerDrug
Protected Attributes inherited from biogears::SEInhaler
std::stringstream	m_ss
CDM::enumOnOff::value	m_State
SEScalarMass *	m_MeteredDose
SEScalarFraction *	m_NozzleLoss
SEScalarVolume *	m_SpacerVolume
const SESubstance *	m_Substance
SESubstanceManager &	m_Substances
Protected Attributes inherited from biogears::SESystem
std::stringstream	m_ss
Protected Attributes inherited from biogears::Loggable
Logger *	m_Logger

Friends
class	BioGears
class	BioGearsEngineTest

Additional Inherited Members
Static Public Attributes inherited from biogears::Loggable
static const std::string	empty
static const char *	empty_cStr

Constructor & Destructor Documentation

biogears::Inhaler::Inhaler ( BioGears &  bg )

protected

biogears::Inhaler::~Inhaler ( )

overridevirtual

Member Function Documentation

void biogears::Inhaler::Administer ( )

protected

Administer Substance Using Inhaler.

Parameters

None

Returns

void

This method initializes substance values in the inhaler when actuated. It is called once per actuation.

Error:

: Already processing a Substance Inhalation, ignoring this command.

Error:

Fatal: Inhaled substance does not have a density value.

const char* biogears::Inhaler::classname ( ) const

inlineoverridevirtual

Reimplemented from biogears::SEInhaler.

void biogears::Inhaler::Clear ( )

overridevirtual

Reimplemented from biogears::SEInhaler.

size_t biogears::Inhaler::hash_code ( ) const

inlineoverridevirtual

Reimplemented from biogears::SEInhaler.

void biogears::Inhaler::Initialize ( )

overridevirtual

Initializes system properties to valid homeostatic values.

Reimplemented from biogears::BioGearsSystem.

bool biogears::Inhaler::Load

(

const CDM::BioGearsInhalerData &

in

)

auto biogears::Inhaler::make_unique ( BioGears &  bg ) -> std::unique_ptr<Inhaler>

staticprotected

void biogears::Inhaler::PostProcess ( )

overridevirtual

Inhaler system postprocess function.

Currently not used.

Implements biogears::BioGearsSystem.

void biogears::Inhaler::PreProcess ( )

overridevirtual

Inhaler Action Preprocessor.

Parameters

None

Returns

void

This method:

• Determines when to activate the inhaler given an inhaler command.
• Starts and stops the inhaler.
• Models deposition of inhaled substance in the orthopharynx

Implements biogears::BioGearsSystem.

void biogears::Inhaler::Process ( )

overridevirtual

Inhaler system process function.

Currently not used.

Implements biogears::BioGearsSystem.

void biogears::Inhaler::SetUp ( )

overrideprotectedvirtual

Implements biogears::BioGearsSystem.

void biogears::Inhaler::StateChange ( )

overrideprotectedvirtual

Reimplemented from biogears::SEInhaler.

static size_t biogears::Inhaler::TypeHash ( )

inlinestatic

static constexpr char const* const biogears::Inhaler::TypeTag ( )

inlinestatic

CDM::BioGearsInhalerData * biogears::Inhaler::Unload ( ) const

overridevirtual

Reimplemented from biogears::SEInhaler.

void biogears::Inhaler::Unload ( CDM::BioGearsInhalerData &  data ) const

protected

Friends And Related Function Documentation

friend class BioGears

friend

friend class BioGearsEngineTest

friend

Member Data Documentation

SELiquidCompartment* biogears::Inhaler::m_AerosolMouthpiece

protected

SEGasCompartment* biogears::Inhaler::m_AmbientEnv

protected

BioGears& biogears::Inhaler::m_data

protected

double biogears::Inhaler::m_dt_s

protected

SELiquidSubstanceQuantity* biogears::Inhaler::m_InhalerDrug

protected

SEGasCompartment* biogears::Inhaler::m_Mouthpiece

protected
