Class corresponding to the HepaticSystemData schema type. More...

#include <Physiology.hxx>

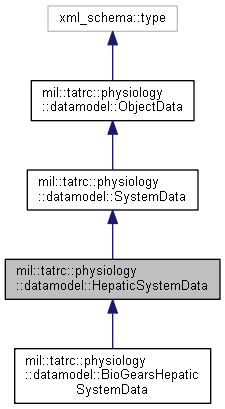

Inheritance diagram for mil::tatrc::physiology::datamodel::HepaticSystemData:

Public Member Functions
virtual	~HepaticSystemData ()
	Destructor. More...

Public Member Functions inherited from mil::tatrc::physiology::datamodel::SystemData
virtual	~SystemData ()
	Destructor. More...

	SystemData ()
	Create an instance from the ultimate base and initializers for required elements and attributes. More...

	SystemData (const ::xercesc::DOMElement &e,::xml_schema::flags f=0,::xml_schema::container *c=0)
	Create an instance from a DOM element. More...

	SystemData (const SystemData &x,::xml_schema::flags f=0,::xml_schema::container *c=0)
	Copy constructor. More...

Public Member Functions inherited from mil::tatrc::physiology::datamodel::ObjectData
virtual	~ObjectData ()
	Destructor. More...

const contentVersion_optional &	contentVersion () const
	Return a read-only (constant) reference to the attribute container. More...

contentVersion_optional &	contentVersion ()
	Return a read-write reference to the attribute container. More...

void	contentVersion (const contentVersion_type &x)
	Set the attribute value. More...

void	contentVersion (const contentVersion_optional &x)
	Set the attribute value. More...

void	contentVersion (::std::unique_ptr< contentVersion_type > p)
	Set the attribute value without copying. More...

	ObjectData ()
	Create an instance from the ultimate base and initializers for required elements and attributes. More...

	ObjectData (const ::xercesc::DOMElement &e,::xml_schema::flags f=0,::xml_schema::container *c=0)
	Create an instance from a DOM element. More...

	ObjectData (const ObjectData &x,::xml_schema::flags f=0,::xml_schema::container *c=0)
	Copy constructor. More...

ObjectData &	operator= (const ObjectData &x)
	Copy assignment operator. More...

KetoneProductionRate
Accessor and modifier functions for the KetoneProductionRate optional element.
typedef ::mil::tatrc::physiology::datamodel::ScalarAmountPerTimeData	KetoneProductionRate_type
	Element type. More...

typedef ::xsd::cxx::tree::optional< KetoneProductionRate_type >	KetoneProductionRate_optional
	Element optional container type. More...

typedef ::xsd::cxx::tree::traits< KetoneProductionRate_type, char >	KetoneProductionRate_traits
	Element traits type. More...

const KetoneProductionRate_optional &	KetoneProductionRate () const
	Return a read-only (constant) reference to the element container. More...

KetoneProductionRate_optional &	KetoneProductionRate ()
	Return a read-write reference to the element container. More...

void	KetoneProductionRate (const KetoneProductionRate_type &x)
	Set the element value. More...

void	KetoneProductionRate (const KetoneProductionRate_optional &x)
	Set the element value. More...

void	KetoneProductionRate (::std::unique_ptr< KetoneProductionRate_type > p)
	Set the element value without copying. More...

HepaticGluconeogenesisRate
Accessor and modifier functions for the HepaticGluconeogenesisRate optional element.
typedef ::mil::tatrc::physiology::datamodel::ScalarMassPerTimeData	HepaticGluconeogenesisRate_type
	Element type. More...

typedef ::xsd::cxx::tree::optional< HepaticGluconeogenesisRate_type >	HepaticGluconeogenesisRate_optional
	Element optional container type. More...

typedef ::xsd::cxx::tree::traits< HepaticGluconeogenesisRate_type, char >	HepaticGluconeogenesisRate_traits
	Element traits type. More...

const HepaticGluconeogenesisRate_optional &	HepaticGluconeogenesisRate () const
	Return a read-only (constant) reference to the element container. More...

HepaticGluconeogenesisRate_optional &	HepaticGluconeogenesisRate ()
	Return a read-write reference to the element container. More...

void	HepaticGluconeogenesisRate (const HepaticGluconeogenesisRate_type &x)
	Set the element value. More...

void	HepaticGluconeogenesisRate (const HepaticGluconeogenesisRate_optional &x)
	Set the element value. More...

void	HepaticGluconeogenesisRate (::std::unique_ptr< HepaticGluconeogenesisRate_type > p)
	Set the element value without copying. More...

Constructors
	HepaticSystemData ()
	Create an instance from the ultimate base and initializers for required elements and attributes. More...

	HepaticSystemData (const ::xercesc::DOMElement &e,::xml_schema::flags f=0,::xml_schema::container *c=0)
	Create an instance from a DOM element. More...

	HepaticSystemData (const HepaticSystemData &x,::xml_schema::flags f=0,::xml_schema::container *c=0)
	Copy constructor. More...

virtual HepaticSystemData *	_clone (::xml_schema::flags f=0,::xml_schema::container *c=0) const
	Copy the instance polymorphically. More...

HepaticSystemData &	operator= (const HepaticSystemData &x)
	Copy assignment operator. More...

Additional Inherited Members
Public Types inherited from mil::tatrc::physiology::datamodel::ObjectData
typedef ::xml_schema::string	contentVersion_type
	Attribute type. More...

typedef ::xsd::cxx::tree::optional< contentVersion_type >	contentVersion_optional
	Attribute optional container type. More...

typedef ::xsd::cxx::tree::traits< contentVersion_type, char >	contentVersion_traits
	Attribute traits type. More...

Detailed Description

Class corresponding to the HepaticSystemData schema type.

Member Typedef Documentation

typedef ::xsd::cxx::tree::optional< HepaticGluconeogenesisRate_type > mil::tatrc::physiology::datamodel::HepaticSystemData::HepaticGluconeogenesisRate_optional

Element optional container type.

typedef ::xsd::cxx::tree::traits< HepaticGluconeogenesisRate_type, char > mil::tatrc::physiology::datamodel::HepaticSystemData::HepaticGluconeogenesisRate_traits

Element traits type.

typedef ::mil::tatrc::physiology::datamodel::ScalarMassPerTimeData mil::tatrc::physiology::datamodel::HepaticSystemData::HepaticGluconeogenesisRate_type

Element type.

typedef ::xsd::cxx::tree::optional< KetoneProductionRate_type > mil::tatrc::physiology::datamodel::HepaticSystemData::KetoneProductionRate_optional

Element optional container type.

typedef ::xsd::cxx::tree::traits< KetoneProductionRate_type, char > mil::tatrc::physiology::datamodel::HepaticSystemData::KetoneProductionRate_traits

Element traits type.

typedef ::mil::tatrc::physiology::datamodel::ScalarAmountPerTimeData mil::tatrc::physiology::datamodel::HepaticSystemData::KetoneProductionRate_type

Element type.

Constructor & Destructor Documentation

mil::tatrc::physiology::datamodel::HepaticSystemData::HepaticSystemData ( )

Create an instance from the ultimate base and initializers for required elements and attributes.

mil::tatrc::physiology::datamodel::HepaticSystemData::HepaticSystemData	(	const ::xercesc::DOMElement &	e,
		::xml_schema::flags	f = `0`,
		::xml_schema::container *	c = `0`
	)

Create an instance from a DOM element.

Parameters

e	A DOM element to extract the data from.
f	Flags to create the new instance with.
c	A pointer to the object that will contain the new instance.

mil::tatrc::physiology::datamodel::HepaticSystemData::HepaticSystemData	(	const HepaticSystemData &	x,
		::xml_schema::flags	f = `0`,
		::xml_schema::container *	c = `0`
	)

Copy constructor.

Parameters

x	An instance to make a copy of.
f	Flags to create the copy with.
c	A pointer to the object that will contain the copy.

For polymorphic object models use the _clone function instead.

mil::tatrc::physiology::datamodel::HepaticSystemData::~HepaticSystemData ( )

virtual

Destructor.

Member Function Documentation

HepaticSystemData * mil::tatrc::physiology::datamodel::HepaticSystemData::_clone	(	::xml_schema::flags	f = `0`,
		::xml_schema::container *	c = `0`
	)		const

virtual

Copy the instance polymorphically.

Parameters

f	Flags to create the copy with.
c	A pointer to the object that will contain the copy.

Returns: A pointer to the dynamically allocated copy.

This function ensures that the dynamic type of the instance is used for copying and should be used for polymorphic object models instead of the copy constructor.

Reimplemented from mil::tatrc::physiology::datamodel::SystemData.

Reimplemented in mil::tatrc::physiology::datamodel::BioGearsHepaticSystemData.

const HepaticSystemData::HepaticGluconeogenesisRate_optional & mil::tatrc::physiology::datamodel::HepaticSystemData::HepaticGluconeogenesisRate ( ) const

Return a read-only (constant) reference to the element container.

Returns: A constant reference to the optional container.

HepaticSystemData::HepaticGluconeogenesisRate_optional & mil::tatrc::physiology::datamodel::HepaticSystemData::HepaticGluconeogenesisRate ( )

Return a read-write reference to the element container.

Returns: A reference to the optional container.

void mil::tatrc::physiology::datamodel::HepaticSystemData::HepaticGluconeogenesisRate ( const HepaticGluconeogenesisRate_type & x )

Set the element value.

Parameters

x	A new value to set.

This function makes a copy of its argument and sets it as the new value of the element.

void mil::tatrc::physiology::datamodel::HepaticSystemData::HepaticGluconeogenesisRate ( const HepaticGluconeogenesisRate_optional & x )

Set the element value.

Parameters

x	An optional container with the new value to set.

If the value is present in x then this function makes a copy of this value and sets it as the new value of the element. Otherwise the element container is set the 'not present' state.

void mil::tatrc::physiology::datamodel::HepaticSystemData::HepaticGluconeogenesisRate ( ::std::unique_ptr< HepaticGluconeogenesisRate_type > p )

Set the element value without copying.

Parameters

p	A new value to use.

This function will try to use the passed value directly instead of making a copy.

const HepaticSystemData::KetoneProductionRate_optional & mil::tatrc::physiology::datamodel::HepaticSystemData::KetoneProductionRate ( ) const

Return a read-only (constant) reference to the element container.

Returns: A constant reference to the optional container.

HepaticSystemData::KetoneProductionRate_optional & mil::tatrc::physiology::datamodel::HepaticSystemData::KetoneProductionRate ( )

Return a read-write reference to the element container.

Returns: A reference to the optional container.

void mil::tatrc::physiology::datamodel::HepaticSystemData::KetoneProductionRate ( const KetoneProductionRate_type & x )

Set the element value.

Parameters

x	A new value to set.

This function makes a copy of its argument and sets it as the new value of the element.

void mil::tatrc::physiology::datamodel::HepaticSystemData::KetoneProductionRate ( const KetoneProductionRate_optional & x )

Set the element value.

Parameters

x	An optional container with the new value to set.

If the value is present in x then this function makes a copy of this value and sets it as the new value of the element. Otherwise the element container is set the 'not present' state.

void mil::tatrc::physiology::datamodel::HepaticSystemData::KetoneProductionRate ( ::std::unique_ptr< KetoneProductionRate_type > p )

Set the element value without copying.

Parameters

p	A new value to use.

This function will try to use the passed value directly instead of making a copy.

HepaticSystemData & mil::tatrc::physiology::datamodel::HepaticSystemData::operator= ( const HepaticSystemData & x )

Copy assignment operator.

Parameters

x	An instance to make a copy of.

Returns: A reference to itself.

For polymorphic object models use the _clone function instead.
