Class corresponding to the ForcedInhaleData schema type. More...

#include <PatientActions.hxx>

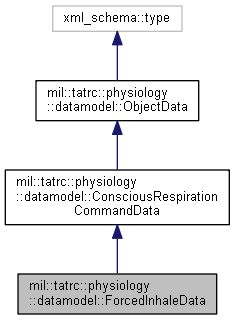

Inheritance diagram for mil::tatrc::physiology::datamodel::ForcedInhaleData:

Public Member Functions
virtual	~ForcedInhaleData ()
	Destructor. More...

Public Member Functions inherited from mil::tatrc::physiology::datamodel::ConsciousRespirationCommandData
virtual	~ConsciousRespirationCommandData ()
	Destructor. More...

const Comment_optional &	Comment () const
	Return a read-only (constant) reference to the element container. More...

Comment_optional &	Comment ()
	Return a read-write reference to the element container. More...

void	Comment (const Comment_type &x)
	Set the element value. More...

void	Comment (const Comment_optional &x)
	Set the element value. More...

void	Comment (::std::unique_ptr< Comment_type > p)
	Set the element value without copying. More...

	ConsciousRespirationCommandData ()
	Create an instance from the ultimate base and initializers for required elements and attributes. More...

	ConsciousRespirationCommandData (const ::xercesc::DOMElement &e,::xml_schema::flags f=0,::xml_schema::container *c=0)
	Create an instance from a DOM element. More...

	ConsciousRespirationCommandData (const ConsciousRespirationCommandData &x,::xml_schema::flags f=0,::xml_schema::container *c=0)
	Copy constructor. More...

ConsciousRespirationCommandData &	operator= (const ConsciousRespirationCommandData &x)
	Copy assignment operator. More...

Public Member Functions inherited from mil::tatrc::physiology::datamodel::ObjectData
virtual	~ObjectData ()
	Destructor. More...

const contentVersion_optional &	contentVersion () const
	Return a read-only (constant) reference to the attribute container. More...

contentVersion_optional &	contentVersion ()
	Return a read-write reference to the attribute container. More...

void	contentVersion (const contentVersion_type &x)
	Set the attribute value. More...

void	contentVersion (const contentVersion_optional &x)
	Set the attribute value. More...

void	contentVersion (::std::unique_ptr< contentVersion_type > p)
	Set the attribute value without copying. More...

	ObjectData ()
	Create an instance from the ultimate base and initializers for required elements and attributes. More...

	ObjectData (const ::xercesc::DOMElement &e,::xml_schema::flags f=0,::xml_schema::container *c=0)
	Create an instance from a DOM element. More...

	ObjectData (const ObjectData &x,::xml_schema::flags f=0,::xml_schema::container *c=0)
	Copy constructor. More...

ObjectData &	operator= (const ObjectData &x)
	Copy assignment operator. More...

InspiratoryCapacityFraction
Accessor and modifier functions for the InspiratoryCapacityFraction required element.
typedef ::mil::tatrc::physiology::datamodel::Scalar0To1Data	InspiratoryCapacityFraction_type
	Element type. More...

typedef ::xsd::cxx::tree::traits< InspiratoryCapacityFraction_type, char >	InspiratoryCapacityFraction_traits
	Element traits type. More...

const InspiratoryCapacityFraction_type &	InspiratoryCapacityFraction () const
	Return a read-only (constant) reference to the element. More...

InspiratoryCapacityFraction_type &	InspiratoryCapacityFraction ()
	Return a read-write reference to the element. More...

void	InspiratoryCapacityFraction (const InspiratoryCapacityFraction_type &x)
	Set the element value. More...

void	InspiratoryCapacityFraction (::std::unique_ptr< InspiratoryCapacityFraction_type > p)
	Set the element value without copying. More...

Period
Accessor and modifier functions for the Period required element.
typedef ::mil::tatrc::physiology::datamodel::ScalarTimeData	Period_type
	Element type. More...

typedef ::xsd::cxx::tree::traits< Period_type, char >	Period_traits
	Element traits type. More...

const Period_type &	Period () const
	Return a read-only (constant) reference to the element. More...

Period_type &	Period ()
	Return a read-write reference to the element. More...

void	Period (const Period_type &x)
	Set the element value. More...

void	Period (::std::unique_ptr< Period_type > p)
	Set the element value without copying. More...

Constructors
	ForcedInhaleData ()
	Default constructor. More...

	ForcedInhaleData (const InspiratoryCapacityFraction_type &, const Period_type &)
	Create an instance from the ultimate base and initializers for required elements and attributes. More...

	ForcedInhaleData (::std::unique_ptr< InspiratoryCapacityFraction_type >,::std::unique_ptr< Period_type >)
	Create an instance from the ultimate base and initializers for required elements and attributes (::std::unique_ptr version). More...

	ForcedInhaleData (const ::xercesc::DOMElement &e,::xml_schema::flags f=0,::xml_schema::container *c=0)
	Create an instance from a DOM element. More...

	ForcedInhaleData (const ForcedInhaleData &x,::xml_schema::flags f=0,::xml_schema::container *c=0)
	Copy constructor. More...

virtual ForcedInhaleData *	_clone (::xml_schema::flags f=0,::xml_schema::container *c=0) const
	Copy the instance polymorphically. More...

ForcedInhaleData &	operator= (const ForcedInhaleData &x)
	Copy assignment operator. More...

Additional Inherited Members
Public Types inherited from mil::tatrc::physiology::datamodel::ConsciousRespirationCommandData
typedef ::xml_schema::string	Comment_type
	Element type. More...

typedef ::xsd::cxx::tree::optional< Comment_type >	Comment_optional
	Element optional container type. More...

typedef ::xsd::cxx::tree::traits< Comment_type, char >	Comment_traits
	Element traits type. More...

Public Types inherited from mil::tatrc::physiology::datamodel::ObjectData
typedef ::xml_schema::string	contentVersion_type
	Attribute type. More...

typedef ::xsd::cxx::tree::optional< contentVersion_type >	contentVersion_optional
	Attribute optional container type. More...

typedef ::xsd::cxx::tree::traits< contentVersion_type, char >	contentVersion_traits
	Attribute traits type. More...

Detailed Description

Class corresponding to the ForcedInhaleData schema type.

Member Typedef Documentation

typedef ::xsd::cxx::tree::traits< InspiratoryCapacityFraction_type, char > mil::tatrc::physiology::datamodel::ForcedInhaleData::InspiratoryCapacityFraction_traits

Element traits type.

typedef ::mil::tatrc::physiology::datamodel::Scalar0To1Data mil::tatrc::physiology::datamodel::ForcedInhaleData::InspiratoryCapacityFraction_type

Element type.

typedef ::xsd::cxx::tree::traits< Period_type, char > mil::tatrc::physiology::datamodel::ForcedInhaleData::Period_traits

Element traits type.

typedef ::mil::tatrc::physiology::datamodel::ScalarTimeData mil::tatrc::physiology::datamodel::ForcedInhaleData::Period_type

Element type.

Constructor & Destructor Documentation

mil::tatrc::physiology::datamodel::ForcedInhaleData::ForcedInhaleData ( )

Default constructor.

Note that this constructor leaves required elements and attributes uninitialized.

mil::tatrc::physiology::datamodel::ForcedInhaleData::ForcedInhaleData	(	const InspiratoryCapacityFraction_type &	InspiratoryCapacityFraction,
		const Period_type &	Period
	)

Create an instance from the ultimate base and initializers for required elements and attributes.

mil::tatrc::physiology::datamodel::ForcedInhaleData::ForcedInhaleData	(	::std::unique_ptr< InspiratoryCapacityFraction_type >	InspiratoryCapacityFraction,
		::std::unique_ptr< Period_type >	Period
	)

Create an instance from the ultimate base and initializers for required elements and attributes (::std::unique_ptr version).

This constructor will try to use the passed values directly instead of making copies.

mil::tatrc::physiology::datamodel::ForcedInhaleData::ForcedInhaleData	(	const ::xercesc::DOMElement &	e,
		::xml_schema::flags	f = `0`,
		::xml_schema::container *	c = `0`
	)

Create an instance from a DOM element.

Parameters

e	A DOM element to extract the data from.
f	Flags to create the new instance with.
c	A pointer to the object that will contain the new instance.

mil::tatrc::physiology::datamodel::ForcedInhaleData::ForcedInhaleData	(	const ForcedInhaleData &	x,
		::xml_schema::flags	f = `0`,
		::xml_schema::container *	c = `0`
	)

Copy constructor.

Parameters

x	An instance to make a copy of.
f	Flags to create the copy with.
c	A pointer to the object that will contain the copy.

For polymorphic object models use the _clone function instead.

mil::tatrc::physiology::datamodel::ForcedInhaleData::~ForcedInhaleData ( )

virtual

Destructor.

Member Function Documentation

ForcedInhaleData * mil::tatrc::physiology::datamodel::ForcedInhaleData::_clone	(	::xml_schema::flags	f = `0`,
		::xml_schema::container *	c = `0`
	)		const

virtual

Copy the instance polymorphically.

Parameters

f	Flags to create the copy with.
c	A pointer to the object that will contain the copy.

Returns: A pointer to the dynamically allocated copy.

This function ensures that the dynamic type of the instance is used for copying and should be used for polymorphic object models instead of the copy constructor.

Reimplemented from mil::tatrc::physiology::datamodel::ConsciousRespirationCommandData.

const ForcedInhaleData::InspiratoryCapacityFraction_type & mil::tatrc::physiology::datamodel::ForcedInhaleData::InspiratoryCapacityFraction ( ) const

Return a read-only (constant) reference to the element.

Returns: A constant reference to the element.

ForcedInhaleData::InspiratoryCapacityFraction_type & mil::tatrc::physiology::datamodel::ForcedInhaleData::InspiratoryCapacityFraction ( )

Return a read-write reference to the element.

Returns: A reference to the element.

void mil::tatrc::physiology::datamodel::ForcedInhaleData::InspiratoryCapacityFraction ( const InspiratoryCapacityFraction_type & x )

Set the element value.

Parameters

x	A new value to set.

This function makes a copy of its argument and sets it as the new value of the element.

void mil::tatrc::physiology::datamodel::ForcedInhaleData::InspiratoryCapacityFraction ( ::std::unique_ptr< InspiratoryCapacityFraction_type > p )

Set the element value without copying.

Parameters

p	A new value to use.

This function will try to use the passed value directly instead of making a copy.

ForcedInhaleData & mil::tatrc::physiology::datamodel::ForcedInhaleData::operator= ( const ForcedInhaleData & x )

Copy assignment operator.

Parameters

x	An instance to make a copy of.

Returns: A reference to itself.

For polymorphic object models use the _clone function instead.

const ForcedInhaleData::Period_type & mil::tatrc::physiology::datamodel::ForcedInhaleData::Period ( ) const

Return a read-only (constant) reference to the element.

Returns: A constant reference to the element.

ForcedInhaleData::Period_type & mil::tatrc::physiology::datamodel::ForcedInhaleData::Period ( )

Return a read-write reference to the element.

Returns: A reference to the element.

void mil::tatrc::physiology::datamodel::ForcedInhaleData::Period ( const Period_type & x )

Set the element value.

Parameters

x	A new value to set.

This function makes a copy of its argument and sets it as the new value of the element.

void mil::tatrc::physiology::datamodel::ForcedInhaleData::Period ( ::std::unique_ptr< Period_type > p )

Set the element value without copying.

Parameters

p	A new value to use.

This function will try to use the passed value directly instead of making a copy.
