Class corresponding to the ArrayData schema type. More...

#include <Properties.hxx>

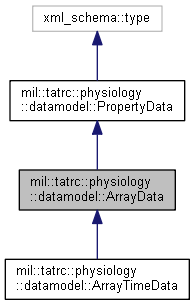

Inheritance diagram for mil::tatrc::physiology::datamodel::ArrayData:

Public Member Functions
virtual	~ArrayData ()
	Destructor. More...

Public Member Functions inherited from mil::tatrc::physiology::datamodel::PropertyData
virtual	~PropertyData ()
	Destructor. More...

	PropertyData ()
	Create an instance from the ultimate base and initializers for required elements and attributes. More...

	PropertyData (const ::xercesc::DOMElement &e,::xml_schema::flags f=0,::xml_schema::container *c=0)
	Create an instance from a DOM element. More...

	PropertyData (const ::xercesc::DOMAttr &a,::xml_schema::flags f=0,::xml_schema::container *c=0)
	Create an instance from a DOM attribute. More...

	PropertyData (const ::std::string &s, const ::xercesc::DOMElement e,::xml_schema::flags f=0,::xml_schema::container c=0)
	Create an instance from a string fragment. More...

	PropertyData (const PropertyData &x,::xml_schema::flags f=0,::xml_schema::container *c=0)
	Copy constructor. More...

Value
Accessor and modifier functions for the Value required element.
typedef ::mil::tatrc::physiology::datamodel::DoubleArray	Value_type
	Element type. More...

typedef ::xsd::cxx::tree::traits< Value_type, char >	Value_traits
	Element traits type. More...

const Value_type &	Value () const
	Return a read-only (constant) reference to the element. More...

Value_type &	Value ()
	Return a read-write reference to the element. More...

void	Value (const Value_type &x)
	Set the element value. More...

void	Value (::std::unique_ptr< Value_type > p)
	Set the element value without copying. More...

unit
Accessor and modifier functions for the unit optional attribute.
typedef ::xml_schema::string	unit_type
	Attribute type. More...

typedef ::xsd::cxx::tree::optional< unit_type >	unit_optional
	Attribute optional container type. More...

typedef ::xsd::cxx::tree::traits< unit_type, char >	unit_traits
	Attribute traits type. More...

const unit_optional &	unit () const
	Return a read-only (constant) reference to the attribute container. More...

unit_optional &	unit ()
	Return a read-write reference to the attribute container. More...

void	unit (const unit_type &x)
	Set the attribute value. More...

void	unit (const unit_optional &x)
	Set the attribute value. More...

void	unit (::std::unique_ptr< unit_type > p)
	Set the attribute value without copying. More...

Constructors
	ArrayData ()
	Default constructor. More...

	ArrayData (const Value_type &)
	Create an instance from the ultimate base and initializers for required elements and attributes. More...

	ArrayData (::std::unique_ptr< Value_type >)
	Create an instance from the ultimate base and initializers for required elements and attributes (::std::unique_ptr version). More...

	ArrayData (const ::xercesc::DOMElement &e,::xml_schema::flags f=0,::xml_schema::container *c=0)
	Create an instance from a DOM element. More...

	ArrayData (const ArrayData &x,::xml_schema::flags f=0,::xml_schema::container *c=0)
	Copy constructor. More...

virtual ArrayData *	_clone (::xml_schema::flags f=0,::xml_schema::container *c=0) const
	Copy the instance polymorphically. More...

ArrayData &	operator= (const ArrayData &x)
	Copy assignment operator. More...

Detailed Description

Class corresponding to the ArrayData schema type.

Member Typedef Documentation

typedef ::xsd::cxx::tree::optional< unit_type > mil::tatrc::physiology::datamodel::ArrayData::unit_optional

Attribute optional container type.

typedef ::xsd::cxx::tree::traits< unit_type, char > mil::tatrc::physiology::datamodel::ArrayData::unit_traits

Attribute traits type.

typedef ::xml_schema::string mil::tatrc::physiology::datamodel::ArrayData::unit_type

Attribute type.

typedef ::xsd::cxx::tree::traits< Value_type, char > mil::tatrc::physiology::datamodel::ArrayData::Value_traits

Element traits type.

typedef ::mil::tatrc::physiology::datamodel::DoubleArray mil::tatrc::physiology::datamodel::ArrayData::Value_type

Element type.

Constructor & Destructor Documentation

mil::tatrc::physiology::datamodel::ArrayData::ArrayData ( )

Default constructor.

Note that this constructor leaves required elements and attributes uninitialized.

mil::tatrc::physiology::datamodel::ArrayData::ArrayData ( const Value_type & Value )

Create an instance from the ultimate base and initializers for required elements and attributes.

mil::tatrc::physiology::datamodel::ArrayData::ArrayData ( ::std::unique_ptr< Value_type > Value )

Create an instance from the ultimate base and initializers for required elements and attributes (::std::unique_ptr version).

This constructor will try to use the passed values directly instead of making copies.

mil::tatrc::physiology::datamodel::ArrayData::ArrayData	(	const ::xercesc::DOMElement &	e,
		::xml_schema::flags	f = `0`,
		::xml_schema::container *	c = `0`
	)

Create an instance from a DOM element.

Parameters

e	A DOM element to extract the data from.
f	Flags to create the new instance with.
c	A pointer to the object that will contain the new instance.

mil::tatrc::physiology::datamodel::ArrayData::ArrayData	(	const ArrayData &	x,
		::xml_schema::flags	f = `0`,
		::xml_schema::container *	c = `0`
	)

Copy constructor.

Parameters

x	An instance to make a copy of.
f	Flags to create the copy with.
c	A pointer to the object that will contain the copy.

For polymorphic object models use the _clone function instead.

mil::tatrc::physiology::datamodel::ArrayData::~ArrayData ( )

virtual

Destructor.

Member Function Documentation

ArrayData * mil::tatrc::physiology::datamodel::ArrayData::_clone	(	::xml_schema::flags	f = `0`,
		::xml_schema::container *	c = `0`
	)		const

virtual

Copy the instance polymorphically.

Parameters

f	Flags to create the copy with.
c	A pointer to the object that will contain the copy.

Returns: A pointer to the dynamically allocated copy.

This function ensures that the dynamic type of the instance is used for copying and should be used for polymorphic object models instead of the copy constructor.

Reimplemented from mil::tatrc::physiology::datamodel::PropertyData.

Reimplemented in mil::tatrc::physiology::datamodel::ArrayTimeData.

ArrayData & mil::tatrc::physiology::datamodel::ArrayData::operator= ( const ArrayData & x )

Copy assignment operator.

Parameters

x	An instance to make a copy of.

Returns: A reference to itself.

For polymorphic object models use the _clone function instead.

const ArrayData::unit_optional & mil::tatrc::physiology::datamodel::ArrayData::unit ( ) const

Return a read-only (constant) reference to the attribute container.

Returns: A constant reference to the optional container.

ArrayData::unit_optional & mil::tatrc::physiology::datamodel::ArrayData::unit ( )

Return a read-write reference to the attribute container.

Returns: A reference to the optional container.

void mil::tatrc::physiology::datamodel::ArrayData::unit ( const unit_type & x )

Set the attribute value.

Parameters

x	A new value to set.

This function makes a copy of its argument and sets it as the new value of the attribute.

void mil::tatrc::physiology::datamodel::ArrayData::unit ( const unit_optional & x )

Set the attribute value.

Parameters

x	An optional container with the new value to set.

If the value is present in x then this function makes a copy of this value and sets it as the new value of the attribute. Otherwise the attribute container is set the 'not present' state.

void mil::tatrc::physiology::datamodel::ArrayData::unit ( ::std::unique_ptr< unit_type > p )

Set the attribute value without copying.

Parameters

p	A new value to use.

This function will try to use the passed value directly instead of making a copy.

const ArrayData::Value_type & mil::tatrc::physiology::datamodel::ArrayData::Value ( ) const

Return a read-only (constant) reference to the element.

Returns: A constant reference to the element.

ArrayData::Value_type & mil::tatrc::physiology::datamodel::ArrayData::Value ( )

Return a read-write reference to the element.

Returns: A reference to the element.

void mil::tatrc::physiology::datamodel::ArrayData::Value ( const Value_type & x )

Set the element value.

Parameters

x	A new value to set.

This function makes a copy of its argument and sets it as the new value of the element.

void mil::tatrc::physiology::datamodel::ArrayData::Value ( ::std::unique_ptr< Value_type > p )

Set the element value without copying.

Parameters

p	A new value to use.

This function will try to use the passed value directly instead of making a copy.
