Provides ventilation and gas exchange of the human respiratory system. More...

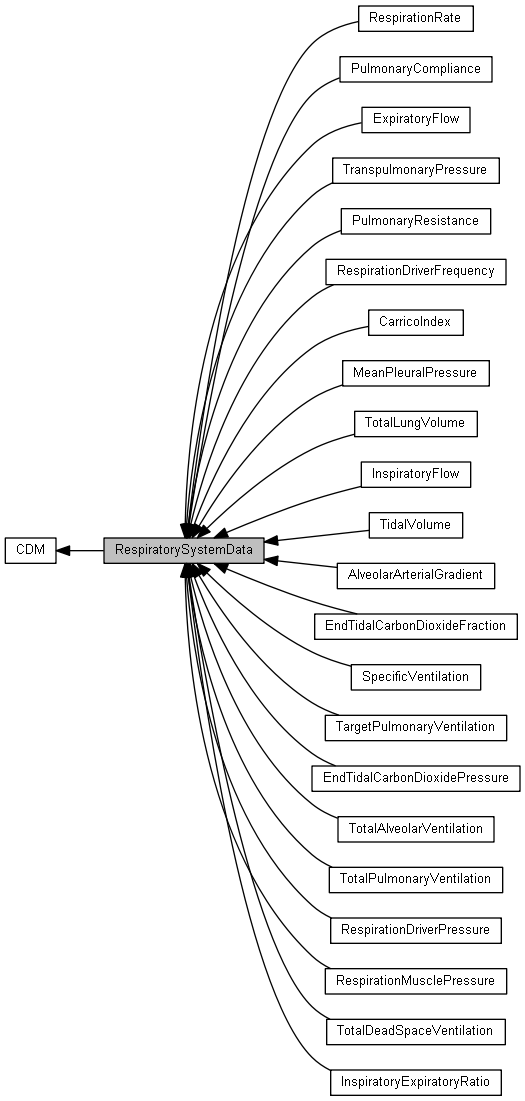

Collaboration diagram for RespiratorySystemData:
Modules | |
AlveolarArterialGradient | |
Measure of the difference between the alveolar concentration of oxygen and the arterial concentration of oxygen to assess the integrity of the alveolar capillary unit.. | |
CarricoIndex | |
The ratio of arterial partial pressure O2 and the inspired O2. O2 level in blood vs. Concentration of O2 in a breath. | |
EndTidalCarbonDioxideFraction | |
The fraction of CarbonDioxide in the trachea that is carbon dioxide at the end of each respiratory cycle. | |
EndTidalCarbonDioxidePressure | |
The pressure of CarbonDioxide in the trachea that is carbon dioxide at the end of each respiratory cycle. | |
ExpiratoryFlow | |
Instantaneous airflow out of the lungs (negative value when inhaling) | |
InspiratoryExpiratoryRatio | |
The ratio of the length of time of inspiration to the length of time of expiration. | |
InspiratoryFlow | |
TInstantaneous airflow into the lungs (negative value when exhaling). | |
MeanPleuralPressure | |
Running average pleural pressure. | |
PulmonaryCompliance | |
The total compliance of the lungs. | |
PulmonaryResistance | |
The total resistance to airflow through the lungs. | |
RespirationDriverFrequency | |
Target frequency of respiratory driver communicated by chemoreceptors. | |
RespirationDriverPressure | |
Target amplitude of respiratory driver communicated by chemoreceptors. | |
RespirationMusclePressure | |
Combined driver pressure of the muscles that contribute to inhalation and exhalation, by aiding in the expansion and contraction of the thoracic cavity. | |
RespirationRate | |
The frequency of the respiratory cycle. | |
SpecificVentilation | |
The ratio of the volume of gas entering a region of the lung following an inspiration and the end-expiratory volume of that same lung region. | |
TidalVolume | |
The volume of air moved into or out of the lungs during normal respiration. | |
TargetPulmonaryVentilation | |
The target ventilation determined by the chemoreceptor method in the Nervous system, used by Respiratory to drive Respiration. | |
TotalAlveolarVentilation | |
The air flow to the alveoli. | |
TotalDeadSpaceVentilation | |
The air flow to the dead space. | |
TotalLungVolume | |
The total volume of air within the lungs at any given time. | |
TotalPulmonaryVentilation | |
The flow rate representing the exchange of air between the lungs and ambient air. | |
TranspulmonaryPressure | |
The pressure difference between the alveoli and the intrapleural space. | |
Detailed Description
Provides ventilation and gas exchange of the human respiratory system.
Supports changes in the lungs volume and pressure data during the flow and transfer of gases between the lungs, the blood and the outside environment.
