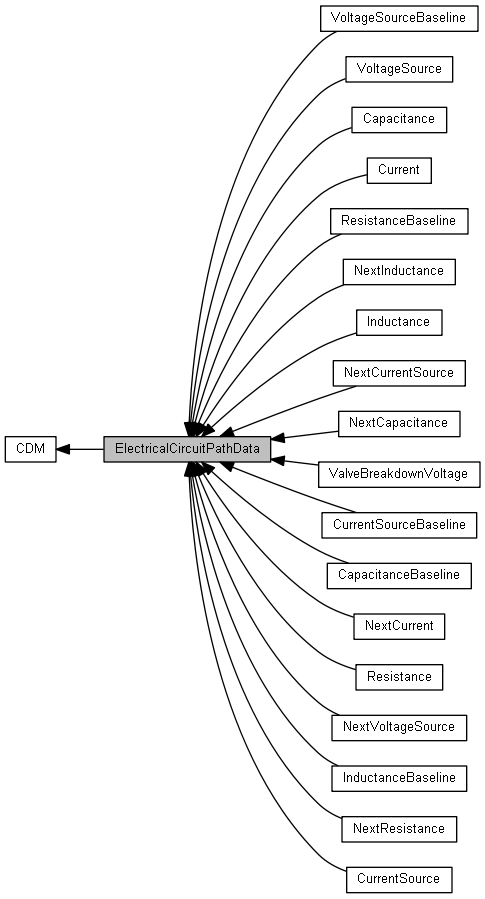

Collaboration diagram for ElectricalCircuitPathData:
|
Modules | |
| Resistance | |
| NextResistance | |
| ResistanceBaseline | |
| Capacitance | |
| NextCapacitance | |
| CapacitanceBaseline | |
| Inductance | |
| NextInductance | |
| InductanceBaseline | |
| Current | |
| NextCurrent | |
| CurrentSource | |
| NextCurrentSource | |
| CurrentSourceBaseline | |
| VoltageSource | |
| NextVoltageSource | |
| VoltageSourceBaseline | |
| ValveBreakdownVoltage | |
| Maximum potential at which the ideal Zener Diode/Valve ceases backflow. | |
